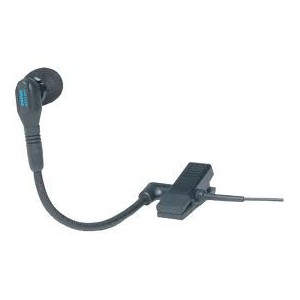

Micro statique SHURE BETA 98

Type

Electret Condenser

Frequency Response

20 to 20,000 Hz

Polar Pattern

Cardioid

Output Impedance

179 Ohms

Sensitivity (at 1 kHz, open circuit voltage)

–48.0 dBV/Pa (4.0 mV)

Maximum SPL (1 kHz at 1% THD)

1000 Ohm load: 144 dB

Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)

64 dB

S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

Dynamic Range (at 1 kHz)

1000 Ohm load: 114 dB

Common Mode Rejection (20 Hz to 20 kHz)

> 50 dB

Clipping Level (1 kHz at 0.25% THD)

1000 Ohm load: 1.0 dBV (1.26 V)

THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL

Self-Noise (typical, equivalent SPL, A-weighted)

30 dB SPL

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Weight

Net: 12 g (0.6 oz.)

Connector

Three-pin professional audio (XLR), male, balanced

Power Requirements

11-52 Vdc phantom, 3.6 mA
